229501N

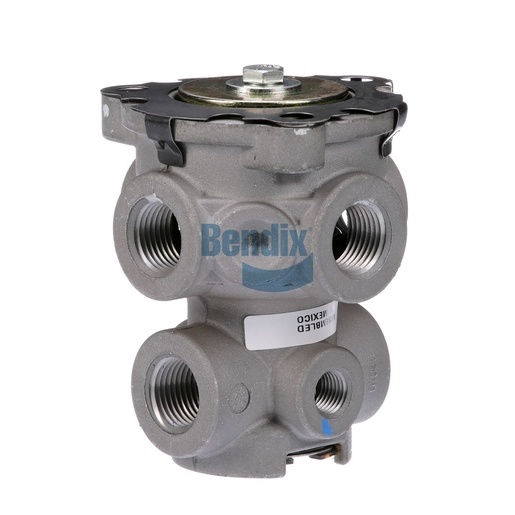

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is an integral part of the air braking system, providing the necessary control for drivers to engage and disengage the brakes effectively. This valve is engineered for precision, ensuring that the braking response is immediate and reliable, even under heavy loads. With a robust design, it operates efficiently across a wide range of temperatures, making it suitable for diverse driving conditions. Weighing just 0.6 kg, it is designed for easy installation, reducing downtime during maintenance. The Foot Brake Valve is crucial for enhancing driver safety and vehicle control, making it a must-have for any commercial fleet. Source One Parts Center is your go-to provider for genuine Bendix OEM parts, ensuring you receive components that meet the highest standards for performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Height
110.0 mm (4.33 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Length
81.5 mm (3.21 in)
Harmonized System (HS) Code
848120
Width
85.9 mm (3.38 in)
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Country of Origin
Mexico
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Weight
1.25 lb
