229800N

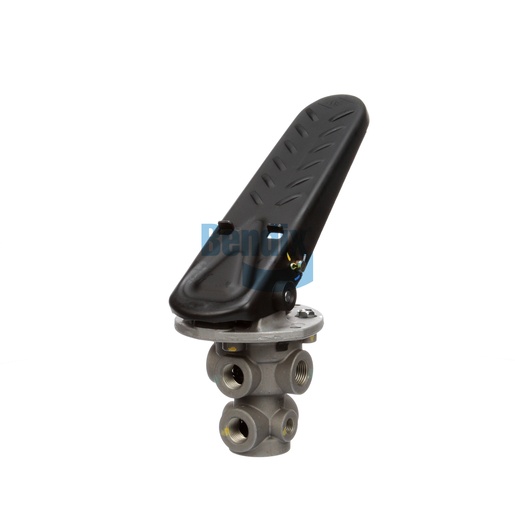

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is a vital component for foot-operated braking systems, designed to enhance the control and responsiveness of your vehicle's braking performance. This E-6 model features a robust construction, weighing 1.8 kg, ensuring it can withstand the demanding conditions of commercial operations. The valve's design includes multiple ports for efficient air distribution, contributing to smooth and reliable braking action. With its high-quality materials and engineering, this valve ensures consistent performance over time, making it an ideal choice for fleet operators. For securing top-notch Bendix OEM parts, Source One Parts Center is the best place to ensure your commercial vehicle maintains optimal performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Pedal Length (Overall)
10.90 IN
Width
115.1 mm (4.53 in)
Total Pedal Travel
17°
Maximum Operating Temperature
200 °F (93 °C)
Length
228.6 mm (9.0 in)
Height
277.4 mm (10.92 in)
Initial Pedal Angle
34°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.88 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
Pedal Pad Included
No
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
3.99 lb
