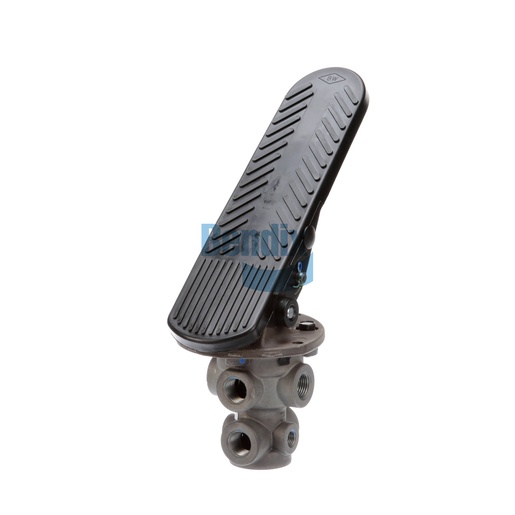

275000N
Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix foot brake valve is a crucial component that allows drivers to effectively control braking in commercial vehicles. This valve features a durable design that withstands the rigors of heavy-duty use, ensuring reliable performance under various conditions. With an operating temperature range of -40°F to 200°F, it is built to function effectively in extreme environments. Its lightweight construction allows for easy installation and maintenance, making it an essential part of your braking system. By purchasing genuine Bendix parts from Source One Parts Center, you can trust that your vehicle is equipped with quality components that enhance safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Pedal Length (Overall)
10.94 IN
Width
115.1 mm (4.53 in)
Total Pedal Travel
18°
Maximum Operating Temperature
200 °F (93 °C)
Length
240.5 mm (9.47 in)
Height
283.5 mm (11.16 in)
Initial Pedal Angle
41°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.45 lb
