275242N

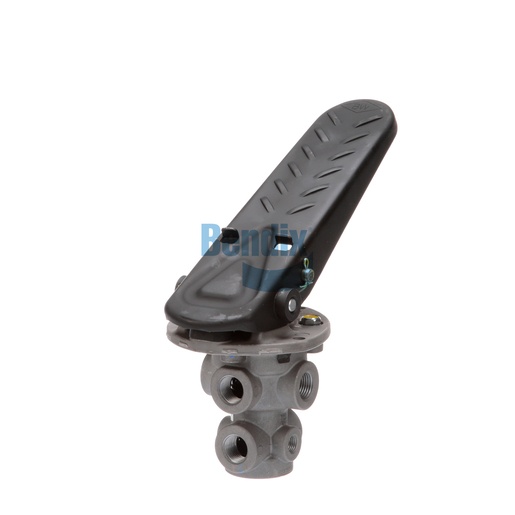

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your vehicle's braking performance with the Bendix foot brake valve, designed for optimal control and safety. This floor-mounted treadle valve features an external vent for efficient operation and is compatible with various truck models. Its rugged stamped steel pedal provides durability and comfort, allowing for precise braking under all conditions. With a total pedal travel of 21° and an initial angle of 27°, this valve ensures smooth operation for the driver. The foot brake valve integrates seamlessly into the vehicle's air system, featuring multiple supply and delivery ports for versatile installation options. By choosing this foot brake valve, you can trust that your braking system will respond effectively, improving safety on the road. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, guaranteeing quality and reliability for your commercial fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Pedal Length (Overall)
10.91 IN
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
21°
Initial Pedal Angle
27°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.88 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
Pedal Pad Included
No
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.3 lb
