275406N

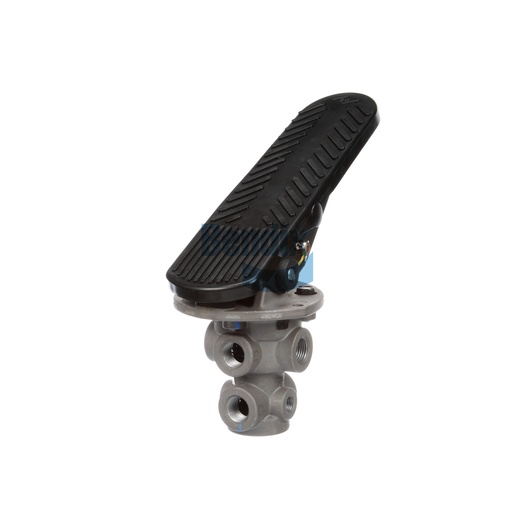

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is a crucial component of your vehicle's braking system, providing precise control over brake application. This valve is designed for smooth operation, allowing drivers to modulate brake pressure effectively, enhancing safety and control. With a maximum operating temperature of 200°F and a minimum of -40°F, it is built to perform reliably in various environmental conditions. The valve features multiple supply and delivery ports, allowing for flexible installation options across a range of vehicle configurations. Its durable construction ensures longevity and consistent performance, making it an essential part of your braking system. Weighing just 4.3 lbs, it is manageable for technicians during installation and maintenance. For those seeking high-quality replacement parts, Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring your vehicle remains safe and efficient on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Pedal Length (Overall)
10.94 IN
Total Pedal Travel
17°
Maximum Operating Temperature
200 °F (93 °C)
Initial Pedal Angle
27°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.3 lb
