275544N
Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

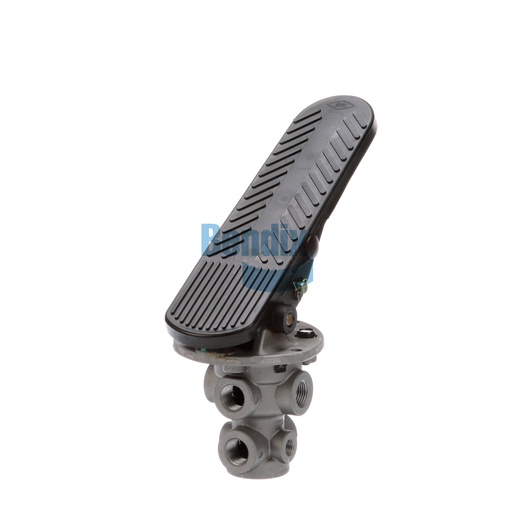

The Bendix Foot Brake Valve E-6 is a vital component of your vehicle's air brake system, providing reliable and responsive braking performance. This valve is designed to ensure that your truck's braking system operates flawlessly, even under extreme conditions, with a maximum temperature rating of 200°F and a minimum of -40°F. Weighing only 4.3 pounds, its compact size allows for easy installation in tight spaces. The valve features multiple supply and delivery ports, making integration into your air system straightforward. Its innovative design prioritizes user comfort and safety, providing smooth pedal operation for effective braking. For those who demand high performance and reliability from their braking system, this foot brake valve is an essential choice. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring your commercial vehicles remain safe and efficient on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Pedal Length (Overall)
10.94 IN
Total Pedal Travel
17°
Maximum Operating Temperature
200 °F (93 °C)
Initial Pedal Angle
34°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.3 lb
