276769N
Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

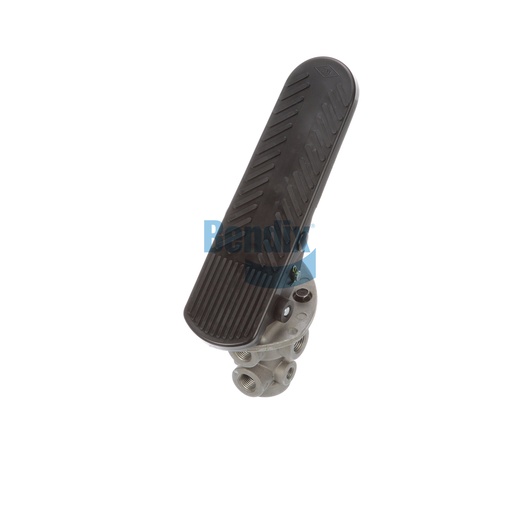

The Bendix Foot Brake Valve E-6 is an essential part of your vehicle's air brake system, providing reliable operation and ensuring safety during braking. This valve is designed to withstand the rigors of heavy-duty applications, with a maximum operating temperature of 200°F and a minimum of -40°F, making it suitable for a wide range of environments. Its compact size and lightweight design, weighing only 4.39 pounds, allow for easy installation in confined spaces. The valve features multiple supply and delivery ports for flexible integration into your braking system, enhancing performance and responsiveness. The plunger and pedal design provide a comfortable user experience, allowing for smooth operation. For those seeking a dependable foot brake solution, this valve is an excellent choice. Source One Parts Center is the ideal source for genuine Bendix OEM parts, ensuring your vehicle operates safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Pedal Length (Overall)
10.94 IN
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
24°
Initial Pedal Angle
41°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.39 lb
