DESCRIPTION

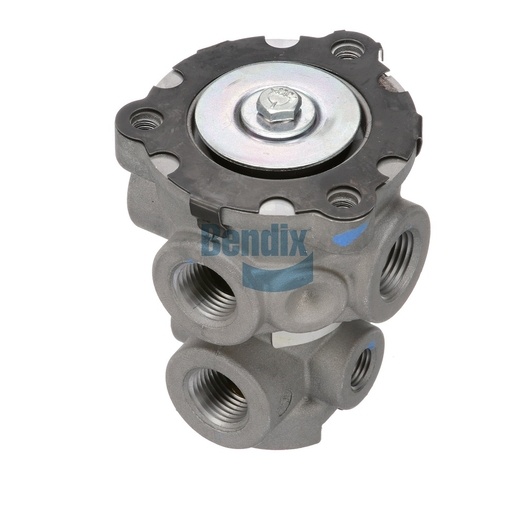

The Foot Brake Valve is an essential part of the braking system in commercial vehicles, providing reliable actuation for effective braking control. This valve is designed to ensure smooth operation under various conditions, contributing to the overall safety of the vehicle. With an external vent and a robust construction, it is built to withstand the rigors of the trucking industry, ensuring durability and longevity. The valve's design facilitates easy installation and maintenance, allowing for quick replacements when necessary. As a critical component for maintaining proper brake function, this valve is crucial for preventing brake failure. For high-quality and reliable truck parts, Source One Parts Center is the best place to purchase genuine Bendix OEM components, providing you with peace of mind on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Height
110.0 mm (4.33 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Length
81.5 mm (3.21 in)
Harmonized System (HS) Code
848120
Width
85.9 mm (3.38 in)
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Country of Origin
Mexico
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Weight
1.39 lb
