278352N

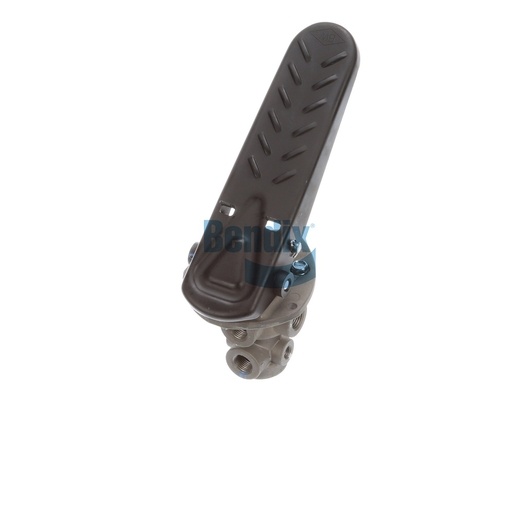

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is designed for smooth and reliable operation in commercial vehicle braking systems. This high-quality valve is engineered to control air pressure effectively through a user-friendly pedal operation. Built to withstand harsh conditions, it features a durable construction that ensures longevity and reliable performance. The valve's compact design, coupled with its functionality, makes it an excellent choice for various truck applications. With a total pedal travel of 22 degrees and a design that incorporates a dust shield, this valve enhances both safety and usability. By investing in genuine Bendix parts like the Foot Brake Valve, you ensure the efficiency and reliability of your braking system. For all your Bendix needs, trust Source One Parts Center as the best destination for genuine OEM parts that guarantee quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Pedal Length (Overall)
10.91 IN
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
22°
Initial Pedal Angle
34°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.88 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
Pedal Pad Included
No
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.72 lb
