278655N

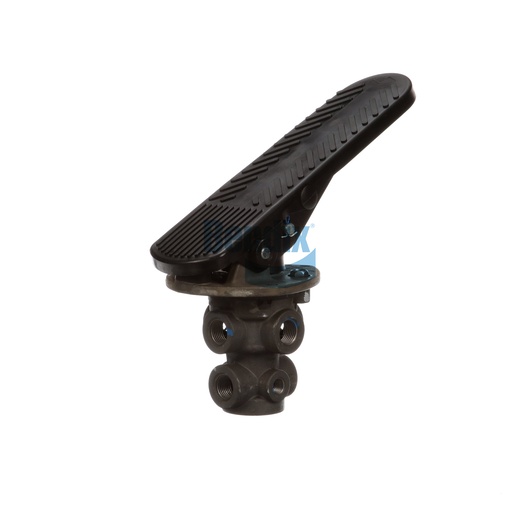

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is an essential component for controlling air flow in braking systems, specifically designed for foot-operated applications. Weighing 2.0 kg (4.32 lb), this valve is built for durability and efficiency, ensuring optimal control of braking action in commercial vehicles. Its innovative design allows for smooth operation, providing drivers with reliable performance and safety. The valve's robust construction ensures longevity, making it a vital part of your vehicle's braking system. By integrating the Bendix Foot Brake Valve, you enhance the effectiveness of your braking system, allowing for greater vehicle control. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, ensuring you access high-quality components that keep your commercial vehicles running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Pedal Length (Overall)
10.94 IN
Width
115.1 mm (4.53 in)
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
21°
Height
255.0 mm (10.04 in)
Length
255.5 mm (10.06 in)
Initial Pedal Angle
27°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.32 lb
