DESCRIPTION

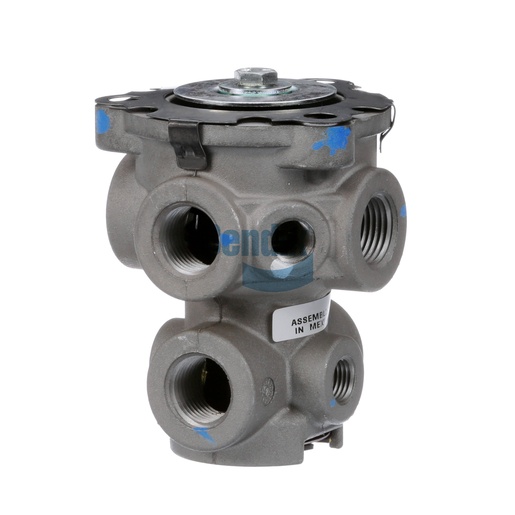

The Bendix Foot Brake Valve is designed for reliable operation and safety in your vehicle's braking system. This component allows for precise control of the braking process, ensuring that each application is smooth and effective. With its lightweight design of just 0.7 kg, it integrates seamlessly into the braking system while providing the durability needed for commercial applications. By choosing genuine Bendix OEM parts like this foot brake valve, you ensure that your vehicle operates safely and efficiently on the road. For a comprehensive selection of Bendix parts, Source One Parts Center is the ultimate source, offering high-quality components tailored for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Auxiliary Delivery Port
1/4-18 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Height
110.0 mm (4.33 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Length
81.5 mm (3.21 in)
Harmonized System (HS) Code
848120
Width
85.9 mm (3.38 in)
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Vent
External
Country of Origin
Mexico
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Weight
1.5 lb
