278998R

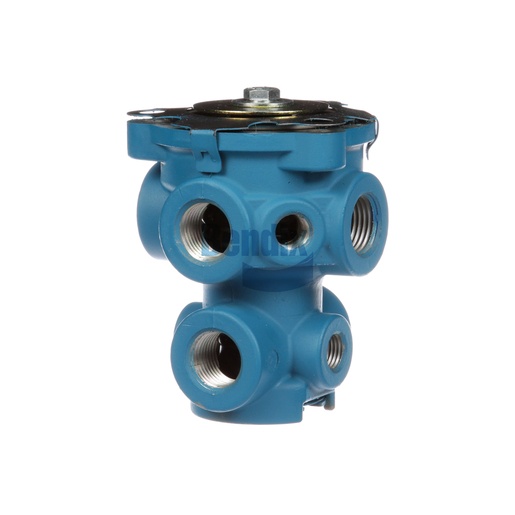

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is designed for heavy-duty applications, providing reliable control for commercial vehicle braking systems. This valve features a compact and lightweight design, making it easy to install while maintaining robust performance. The external venting design ensures effective operation even in challenging conditions, while its durable construction guarantees a long service life. With differential pressure of 3.0 PSI, it provides precise control over air supply, enhancing the efficiency of your braking system. Trust Source One Parts Center for your Bendix OEM parts, as we ensure you receive the highest quality components for optimal vehicle performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Auxiliary Delivery Port
1/4-18 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Vent
External
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Country of Origin
United States, Mexico
Weight
1.5 lb
