279040

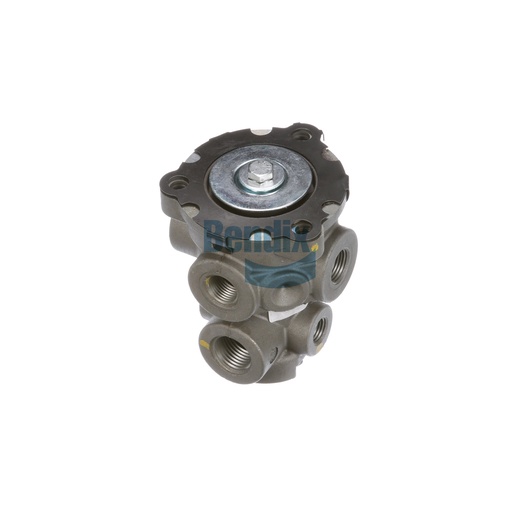

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is engineered to provide precise control over your vehicle's braking system. Designed for heavy-duty applications, this valve features a robust construction that ensures reliable operation under various conditions. The external vent and dust shield enhance its durability, making it a perfect choice for commercial vehicles. This valve is essential for the effective operation of air brakes, providing a secure and responsive braking experience. Regular maintenance of the foot brake valve is crucial for ensuring the safety and efficiency of your braking system. Source One Parts Center is the top source for genuine Bendix OEM parts, ensuring that you receive the best quality components tailored to your commercial vehicle's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Height
110.0 mm (4.33 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Length
81.5 mm (3.21 in)
Harmonized System (HS) Code
848120
Width
85.9 mm (3.38 in)
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Country of Origin
Mexico
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Weight
1.43 lb
