279750N

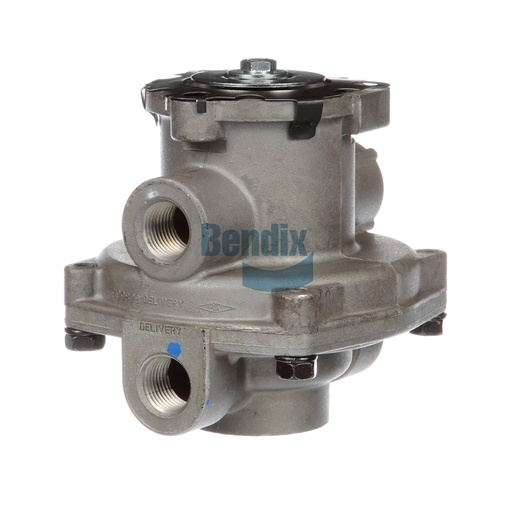

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is a vital component for any commercial vehicle's braking system, providing direct control and efficiency when it comes to foot-operated braking. This valve operates effectively within a range of pressures and is built to comply with FMVSS 121 regulations, ensuring it meets industry safety standards. With a durable construction that includes a rubber spring graduation style and a maximum operating temperature of 200°F, this foot brake valve can handle the demands of the road. Its compact design allows for straightforward installation while providing reliable performance over time. Weighing only 1.2 kg, it is a lightweight choice that does not compromise on strength. For the best quality and selection of Bendix OEM parts, look no further than Source One Parts Center, your trusted source for commercial vehicle components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery (21) Port 1
1/2-14 NPT
Delivery (22) Port 1
1/2-14 NPT
Supply (11) Port 1
1/2-14 NPT
Supply (12) Port 1
1/2-14 NPT
Length
114.3 mm (4.5 in)
Width
115.1 mm (4.53 in)
Height
124.2 mm (4.89 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Rubber Spring
Weight
2.62 lb
