279872

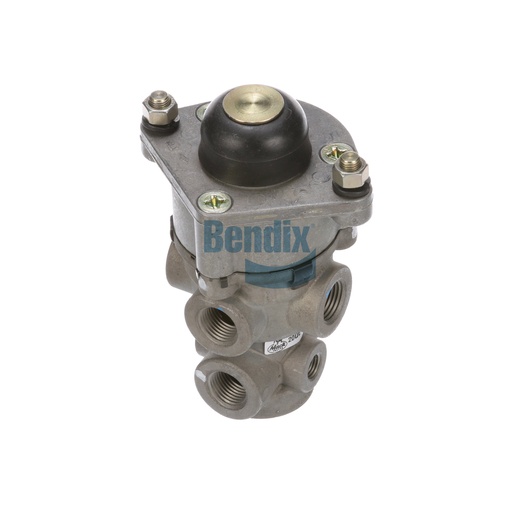

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your vehicle's braking capabilities with the Bendix Foot Brake Valve, designed for smooth operation and exceptional reliability. This valve is essential for controlling the air supply to the brakes, ensuring that your braking system responds quickly and effectively to your commands. With a robust construction, it withstands tough conditions and provides a long service life, making it ideal for commercial applications. The valve features an ergonomic design that enhances user experience and allows for precise control over brake engagement. Easy to install and maintain, this valve is a smart choice for any fleet operator. For premium Bendix parts, Source One Parts Center is the go-to destination for quality and authenticity.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
.75 IN
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Length
115.8 mm (4.56 in)
Height
166.4 mm (6.55 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting (Vehicle)
3/8-24 UNF-3A Stud (2x)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Width
90.7 mm (3.57 in)
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Pedal Included
No
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Plunger Material
Steel
Country of Origin
United States, Mexico
Mounting Nuts / Washers Included
Yes
Mounting Plate Included
Yes
Rubber Boot Included
Yes
Weight
2.8 lb
