279950N

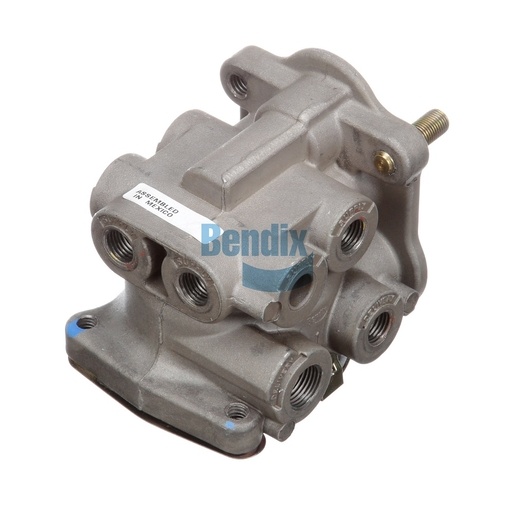

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve by Bendix is designed for use in commercial vehicles to enhance the functionality of air-operated braking systems. This valve is engineered for durability and reliability, capable of withstanding rigorous conditions, ensuring that your braking system operates smoothly and efficiently. It features multiple ports for versatile installation and integration, providing flexibility in how it can be used across various applications. With temperature tolerances from -40°F to 200°F, this valve maintains consistent performance in extreme weather conditions. Installing this foot brake valve can lead to better brake responsiveness and overall safety on the road. Source One Parts Center is your trusted destination for obtaining genuine Bendix OEM parts, guaranteeing quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
.62 IN
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 4
1/2-14 NPT
Supply Port 7
1/2-14 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Supply Port 1
1/4-18 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Supply Port 5
1/4-18 NPT
Supply Port 6
1/4-18 NPT
Supply Port 8
1/8-27 NPT
Height
100.8 mm (3.97 in)
Length
115.1 mm (4.53 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting (Vehicle)
3/8-16 UNC-3B (1x), 3/8-24 UNF-3A Stud (2x)
Delivery Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Width
95.3 mm (3.75 in)
Port Configuration
Axial / Perpendicular
Supply Port 2
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting Plate Included
No
Pedal Included
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Weight
2.49 lb
