279950R

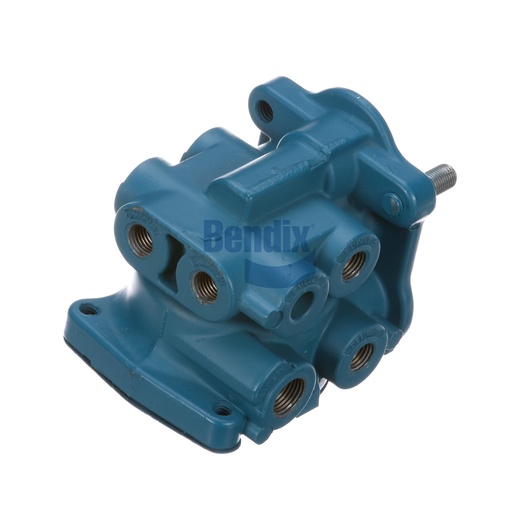

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is an integral part of your Bendix air brake system, designed to provide precise control over your vehicle's braking performance. This valve features a robust construction and is built to handle the rigorous demands of commercial vehicles, ensuring consistent and reliable operation. With various ports for efficient air flow, it allows for accurate modulation of braking pressure, enhancing overall safety. Weighing approximately 2.49 lbs, it is easy to install and integrates seamlessly into your existing braking system. This foot brake valve meets stringent OEM specifications, guaranteeing compatibility and reliability. Choose Source One Parts Center for genuine Bendix OEM parts, ensuring your vehicle maintains peak performance and safety on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
.62 IN
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 4
1/2-14 NPT
Supply Port 7
1/2-14 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Supply Port 1
1/4-18 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Supply Port 5
1/4-18 NPT
Supply Port 6
1/4-18 NPT
Supply Port 8
1/8-27 NPT
Height
100.8 mm (3.97 in)
Length
115.1 mm (4.53 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting (Vehicle)
3/8-16 UNC-3B (1x), 3/8-24 UNF-3A Stud (2x)
Delivery Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Width
95.3 mm (3.75 in)
Port Configuration
Axial / Perpendicular
Supply Port 2
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting Plate Included
No
Pedal Included
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Weight
2.49 lb
