279951N

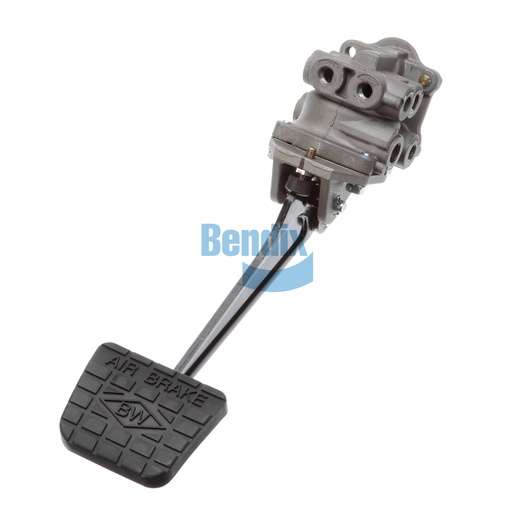

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve by Bendix is a vital component in your commercial vehicle's air brake system, providing precise control for optimal braking performance. This foot-operated valve is designed with multiple supply ports, allowing for seamless integration into various braking systems. With a durable stamped steel pedal and a total pedal travel of 18°, it offers excellent responsiveness and comfort for the driver. Operating within a temperature range of -40°F to 200°F, this valve is engineered to function effectively in extreme conditions, ensuring reliability across diverse driving environments. Its strategic design includes a dust shield exhaust port to keep contaminants at bay, enhancing the longevity of the valve. This foot brake valve not only improves safety by enabling quick and effective braking but also simplifies maintenance with its user-friendly configuration. For those seeking genuine Bendix OEM parts, Source One Parts Center is the ideal choice, ensuring you receive top-quality components that meet rigorous industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
.62 IN
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 4
1/2-14 NPT
Supply Port 7
1/2-14 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Supply Port 1
1/4-18 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Supply Port 5
1/4-18 NPT
Supply Port 6
1/4-18 NPT
Supply Port 8
1/8-27 NPT
Pedal Length (from Pivot)
10.75 IN
Pedal Length (Overall)
11.50 IN
Total Pedal Travel
18°
Maximum Operating Temperature
200 °F (93 °C)
Mounting (Vehicle)
3/8-16 UNC-3B (1x), 3/8-24 UNF-3A Stud (2x)
Delivery Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Initial Pedal Angle
52°
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Supply Port 2
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
Pedal Pad Included
No
Pedal Offset
No Offset
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Pedal Style
Suspended (Pedal)
Mounting Plate Included
Yes
Pedal Included
Yes
Weight
5.49 lb
