281069

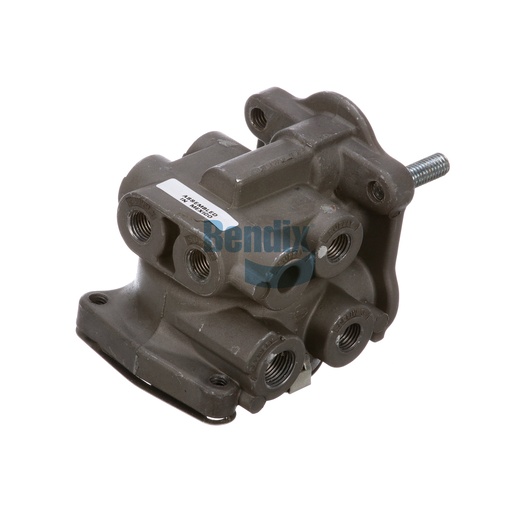

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix foot brake valve is engineered for superior performance and reliability in heavy-duty applications. This valve allows for precise control of air pressure, enabling quick and safe braking when needed. It features a durable design that can withstand harsh operating conditions, ensuring longevity and consistent performance. The pedal is made from stamped steel, providing robust operation while being lightweight for ease of use. With an adjustable design and multiple supply ports, it fits various configurations, making it a versatile choice for different truck models. By investing in this foot brake valve, you enhance the safety and efficiency of your vehicle's braking system. For authentic Bendix OEM parts, trust Source One Parts Center, where quality and reliability come first.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
.75 IN
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 4
1/2-14 NPT
Supply Port 7
1/2-14 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Supply Port 1
1/4-18 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Supply Port 5
1/4-18 NPT
Supply Port 6
1/4-18 NPT
Supply Port 8
1/8-27 NPT
Height
100.8 mm (3.97 in)
Length
118.4 mm (4.66 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting (Vehicle)
3/8-16 UNC-3B (1x), 3/8-24 UNF-3A Stud (2x)
Delivery Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Width
95.3 mm (3.75 in)
Port Configuration
Axial / Perpendicular
Supply Port 2
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
Mounting Plate Included
No
Pedal Included
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Weight
2.34 lb
