281875

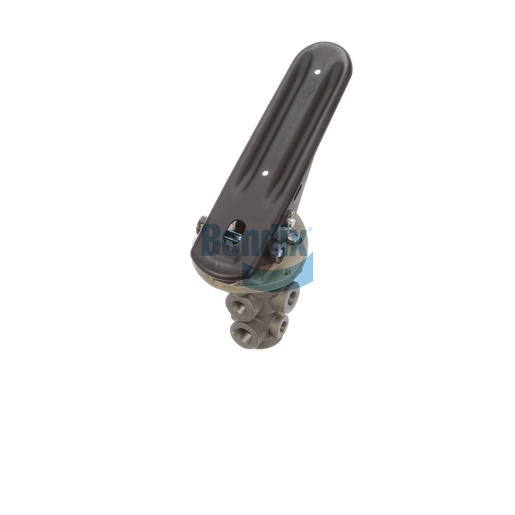

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your vehicle's braking performance with the Bendix Foot Brake Valve, designed specifically for foot-operated brake systems. This high-quality valve facilitates smooth and controlled braking, enhancing overall safety during operation. With a robust design that withstands the rigors of commercial use, this valve is engineered for reliability and longevity. Its easy installation allows for seamless integration into existing brake systems, making it ideal for both new and replacement applications. By utilizing this foot brake valve, you ensure that your braking system operates effectively under all conditions. When searching for genuine Bendix OEM parts, Source One Parts Center is the top destination for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Pedal Length (Overall)
10.91 IN
Width
115.1 mm (4.53 in)
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
21°
Length
246.4 mm (9.7 in)
Height
271.8 mm (10.7 in)
Initial Pedal Angle
27°
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
Pedal Pad Included
No
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
3.99 lb
