283013N

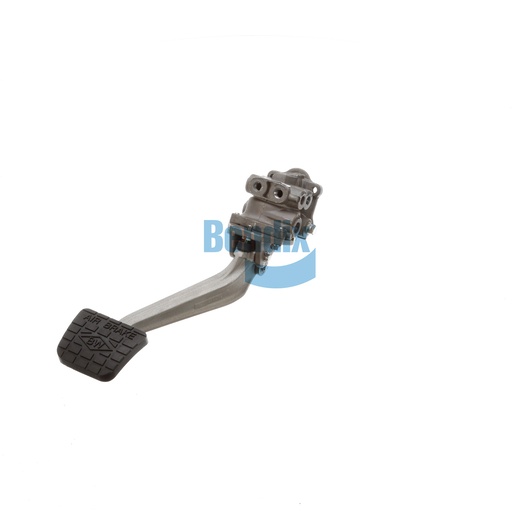

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve by Bendix is designed for use in heavy-duty air brake systems, offering reliable performance and precise control for commercial vehicles. This valve, weighing 5.49 lbs, is engineered to withstand the rigors of demanding applications while ensuring optimal functionality under various conditions. Its robust construction features a suspended pedal style that provides excellent control over brake engagement and release, essential for maintaining safety on the road. The valve's design includes several ports for versatile installation, making it suitable for a wide range of vehicle configurations. Regular maintenance and timely replacement of the foot brake valve are vital for ensuring the safety and reliability of your braking system. Trust Source One Parts Center for genuine Bendix OEM parts, guaranteeing quality and performance for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 4
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply Port 7
1/2-14 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Supply Port 1
1/4-18 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Supply Port 5
1/4-18 NPT
Supply Port 6
1/4-18 NPT
Supply Port 8
1/8-27 NPT
Pedal Length (from Pivot)
10.75 IN
Pedal Length (Overall)
11.55 IN
Total Pedal Travel
18°
Maximum Operating Temperature
200 °F (93 °C)
Pedal Offset
3.25 IN (Left)
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Delivery Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Initial Pedal Angle
52°
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Pedal Material
Cast Aluminum
Supply Port 2
Cored Closed
Country of Origin
Mexico
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Plunger Material
Steel
Pedal Style
Suspended (Pedal)
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Weight
5.49 lb
