283927
Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

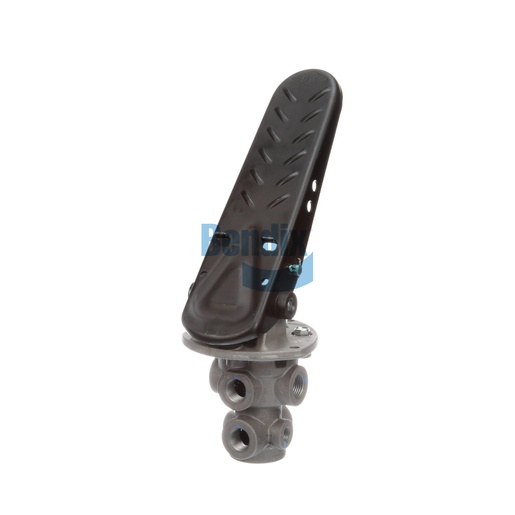

The Foot Brake Valve by Bendix is a reliable component for controlling air brake systems in commercial vehicles. This valve is designed for foot operation, providing precise control over brake engagement and release, which is crucial for maintaining safety on the road. With a net weight of 4.48 lbs, it is both lightweight and sturdy, allowing for easy installation without compromising on performance. This valve's robust engineering ensures it can withstand harsh operational conditions while delivering consistent results. Regular maintenance of your foot brake valve is essential for optimal brake functionality. When looking for genuine Bendix OEM parts, Source One Parts Center is your best choice, offering quality components that ensure your vehicle's braking system operates smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Pedal Length (Overall)
10.91 IN
Width
115.1 mm (4.53 in)
Total Pedal Travel
17°
Length
184.4 mm (7.26 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
328.9 mm (12.95 in)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Initial Pedal Angle
50°
Pedal Length (from Pivot)
8.88 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Auxiliary Delivery Port
Cored Closed
Exhaust Port
Dust Shield
Vent
External
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
Pedal Pad Included
No
Waterproof
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.48 lb
