284064N

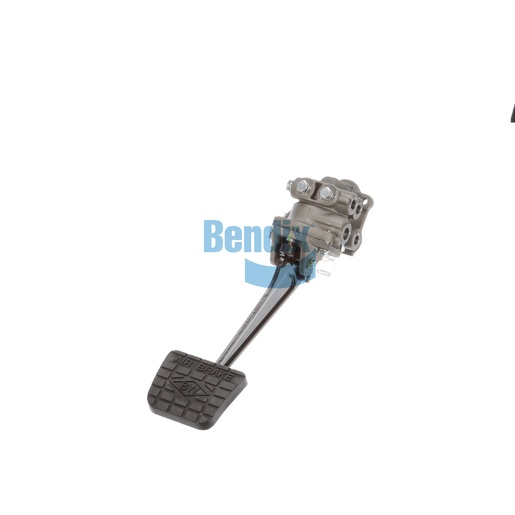

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is expertly designed for commercial vehicles, providing a reliable solution for foot-operated braking systems. This valve is engineered to operate efficiently under various pressure conditions, ensuring consistency and safety in braking performance. Its robust construction is compliant with FMVSS 121 regulations, guaranteeing it meets industry standards for safety and reliability. With a maximum operating temperature of 200°F and a lightweight design of just 1.2 kg, this valve is both durable and easy to install in your vehicle. The valve comes equipped with multiple supply and delivery ports, offering versatility for different applications. For top-notch Bendix OEM parts, Source One Parts Center is the leading choice, ensuring you receive authentic and high-quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT (Plugged)
Supply Port 7
1/2-14 NPT (Plugged)
Supply Port 2
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Delivery Port 1
1/4-18 NPT (Plugged)
Supply Port 1
1/4-18 NPT (Plugged)
Supply Port 3
1/4-18 NPT (Plugged)
Supply Port 5
1/4-18 NPT (Plugged)
Supply Port 6
1/4-18 NPT (Plugged)
Supply Port 8
1/8-27 NPT
Pedal Length (from Pivot)
10.75 IN
Pedal Length (Overall)
11.50 IN
Total Pedal Travel
18°
Maximum Operating Temperature
200 °F (93 °C)
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Delivery Port 2
3/8-18 NPT
Initial Pedal Angle
41°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Country of Origin
Mexico
Pedal Pad Included
No
Pedal Offset
No Offset
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Pedal Material
Stamped Steel
Plunger Material
Steel
Pedal Style
Suspended (Pedal)
Mounting Plate Included
Yes
Pedal Included
Yes
Weight
5.8 lb
