284760R

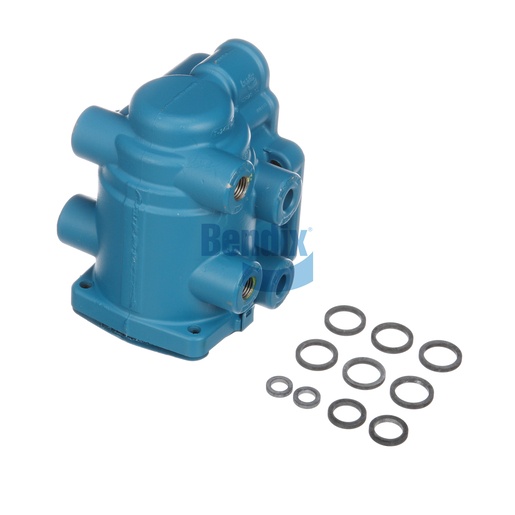

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve from Bendix is a vital component designed to enhance your vehicle's braking system. This valve is engineered for precision control and reliability, allowing drivers to operate their brakes effectively and safely. With a sturdy design that can withstand demanding conditions, it is built for longevity and performance. The valve facilitates smooth air flow management, ensuring that your braking system responds promptly to inputs. Suitable for a variety of applications, it operates effectively in temperatures ranging from -40 °F to 200 °F. For those seeking the highest quality in truck parts, Source One Parts Center is the best place to purchase genuine Bendix OEM components, ensuring your vehicle remains safe and efficient on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Length
102.9 mm (4.05 in)
Width
110.7 mm (4.36 in)
Height
147.3 mm (5.8 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Delivery (21) Port 1
Cored Closed
Delivery (21) Port 2
Cored Closed
Delivery (22) Port 1
Cored Closed
Delivery (22) Port 2
Cored Closed
Supply (11) Port 1
Cored Closed
Supply (12) Port 1
Cored Closed
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Delivery (21) Port 3
Open Port
Delivery (22) Port 3
Open Port
Supply (11) Port 3
Open Port
Supply (12) Port 3
Open Port
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Weight
4.01 lb
