285148

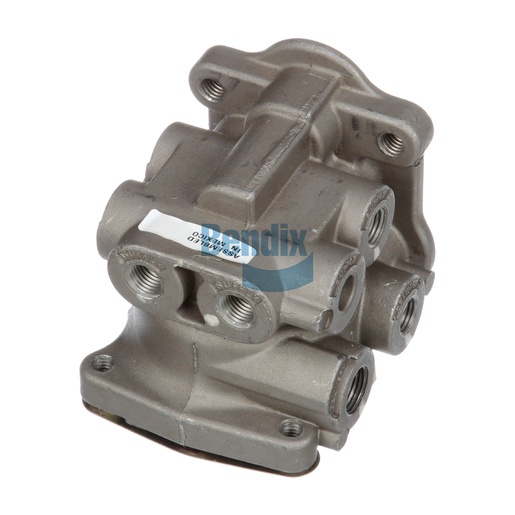

Foot Brake Valve
Bendix

DISCONTINUED

Bendix

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
The Foot Brake Valve from Bendix is a vital component for enhancing the braking system in commercial trucks. Engineered for reliability and performance, this foot-operated valve allows for precise brake control, ensuring that drivers can effectively manage vehicle speed and stopping power under various conditions. With a robust design featuring multiple supply and delivery ports, it is compatible with a wide range of truck models, facilitating seamless integration into existing braking systems. Its high-quality materials and construction guarantee durability, even when exposed to harsh environmental conditions, making it an essential part for long hauls. The valve operates efficiently across a temperature range from -40°F to 200°F, ensuring optimal performance in both extreme cold and heat. When it comes to maintaining the safety and efficiency of your vehicle, choosing the right brake components is crucial. At Source One Parts Center, we pride ourselves on offering genuine Bendix OEM parts, ensuring you receive top-quality components tailored for your commercial vehicle needs.

SPECIFICATIONS

Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 4
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply Port 7
1/2-14 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Supply Port 1
1/4-18 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Supply Port 5
1/4-18 NPT
Supply Port 6
1/4-18 NPT
Supply Port 8
1/8-27 NPT
Height
100.8 mm (3.97 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Delivery Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Width
95.3 mm (3.75 in)
Length
99.3 mm (3.91 in)
Port Configuration
Axial / Perpendicular
Supply Port 2
Cored Closed
Country of Origin
Mexico
Mounting Plate Included
No
Pedal Included
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Weight
2.29 lb
