$319.95
$383.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

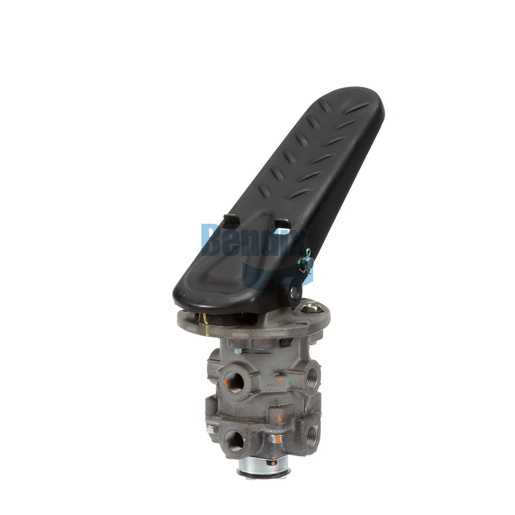

The Bendix Foot Brake Valve is a key component designed to enhance the braking capabilities of commercial vehicles. This valve features a durable construction that ensures reliability and performance in demanding environments. Its treadle design allows for precise control, making it easier for drivers to manage braking effectively. Weighing 2.3 kg, this valve is engineered for easy installation and maintenance, minimizing downtime and maximizing safety. With Source One Parts Center, you can trust that you are purchasing genuine Bendix OEM parts that meet the highest standards of quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.88 IN
Width
114.8 mm (4.52 in)
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
20°
Length
231.4 mm (9.11 in)
Height
295.7 mm (11.64 in)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Initial Pedal Angle
34°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.88 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
BVA-85 Included
No
Pedal Pad Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Pedal Material
Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
5.1 lb
