286689N

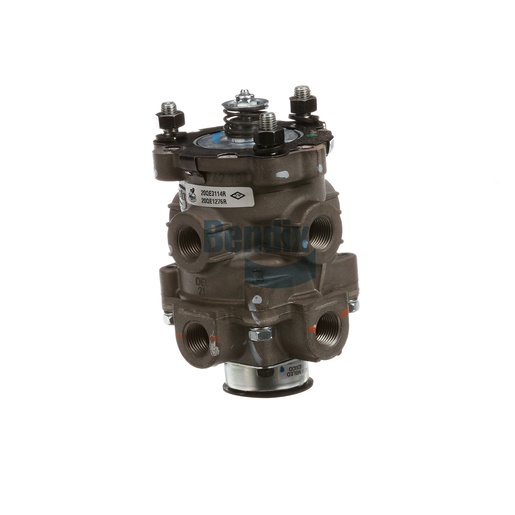

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is engineered for superior performance and reliability, ensuring that your vehicle's braking system operates at its best. This valve features a robust design that allows for efficient air control, facilitating a smooth and responsive braking experience. It comes with multiple delivery and supply ports, providing flexibility for various installation setups in commercial vehicles. With a temperature range suitable for extreme environments, this valve guarantees durability and long-lasting performance, essential for heavy-duty applications. When it comes to maintaining safe and efficient braking capabilities, replacing worn valves with genuine Bendix parts is crucial. Trust Source One Parts Center for your Bendix OEM parts, where quality and customer satisfaction are our top priorities.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
0.66 IN
VMRS
013-010-051: Application Valve - Dual
Height
141.7 mm (5.58 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-24 UNF-3A Stud (3x)
Harmonized System (HS) Code
848120
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Mounting Nuts / Washers Included
Yes
Weight
4.96 lb
