287073N

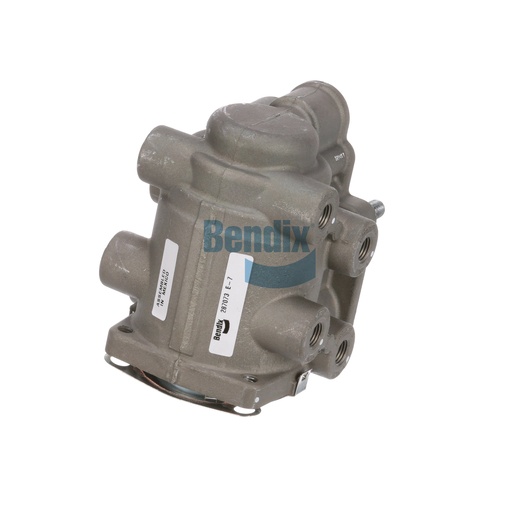

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is an essential part of your Bendix braking system, designed to provide reliable control over braking performance in heavy-duty vehicles. This valve features a robust design that can withstand the demanding conditions of commercial use, ensuring consistent operation. Equipped with multiple ports for efficient air flow, it allows for precise modulation of braking pressure, enhancing overall safety. Weighing approximately 3.24 lbs, it is compact and easy to install, integrating seamlessly into your existing braking system. This foot brake valve meets all OEM specifications, guaranteeing compatibility and reliability. Choose Source One Parts Center for genuine Bendix OEM parts, ensuring your vehicle maintains peak performance and safety on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
0.81 IN
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 2
1/4-18 NPT
Delivery (22) Port 2
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Width
110.7 mm (4.36 in)
Length
123.4 mm (4.86 in)
Height
147.3 mm (5.8 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Mounting (Vehicle)
3/8-24 UNC-2A Stud (3x)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Nuts / Washers Included
No
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Weight
3.24 lb
