287335N

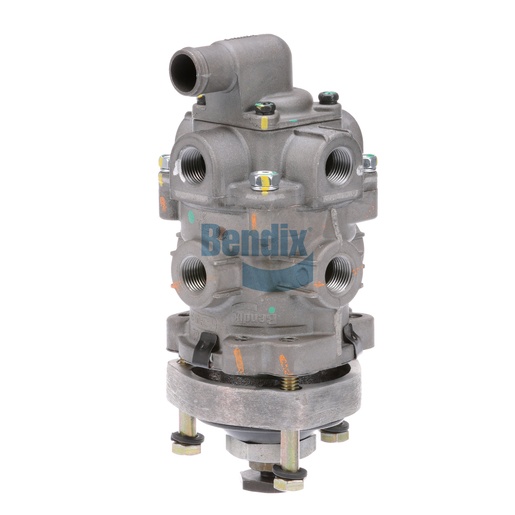

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is engineered to provide precise control in your vehicle's air brake system, enhancing overall safety and performance. Weighing 1.4 kg, this valve is designed for durability and reliability, with a robust construction that can withstand the demands of heavy-duty applications. The valve features a push rod pedal style that allows for easy operation, ensuring quick response times in braking situations. Its design includes various ports for efficient air distribution, contributing to a smooth and effective braking experience. By choosing this genuine Bendix part, you ensure that your braking system functions optimally, reducing the risk of accidents. Source One Parts Center is your trusted supplier for high-quality Bendix OEM parts, ensuring you receive the best products for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Height
196.3 mm (7.73 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Mounting (Vehicle)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Width
88.1 mm (3.47 in)
Length
90.7 mm (3.57 in)
Port Configuration
Axial / Perpendicular
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Retarder Included
No
Waterproof
No
Pedal Style
Push Rod
Graduation Spring Style
Rubber Spring
Exhaust Port
Snorkel - 3/4 Tube (90° Elbow)
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Weight
3.15 lb
