287411R

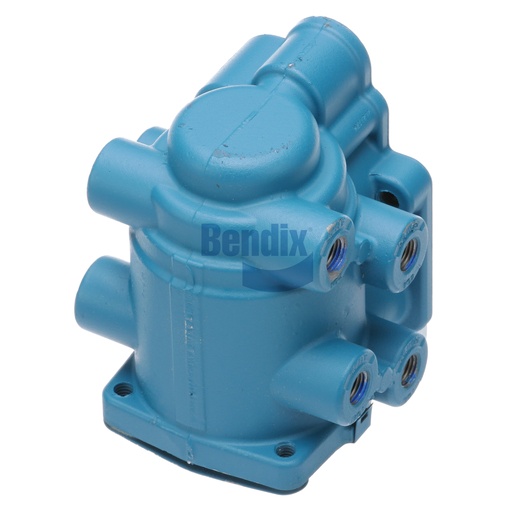

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is expertly designed to provide reliable control of your vehicle's braking system, allowing for precise modulation of brake pressure during operation. This valve is essential for ensuring safety and responsiveness in braking performance, contributing to the overall functionality of your commercial vehicle. With its robust construction, it operates effectively across a wide temperature range from -40°F to 200°F, making it suitable for various environments. The valve's compact size and lightweight (2.27 lbs) enhance its ease of installation, while its design accommodates multiple supply ports, offering flexibility in vehicle configurations. This ensures compatibility with a wide range of applications, making it a preferred choice for fleet operators and maintenance professionals. At Source One Parts Center, we pride ourselves on providing genuine Bendix OEM parts, ensuring that your braking system operates flawlessly with top-quality components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 2
1/4-18 NPT
Delivery (22) Port 2
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Length
102.9 mm (4.05 in)
Width
110.7 mm (4.36 in)
Height
147.3 mm (5.8 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Delivery (21) Port 1
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Weight
2.49 lb
