287516N

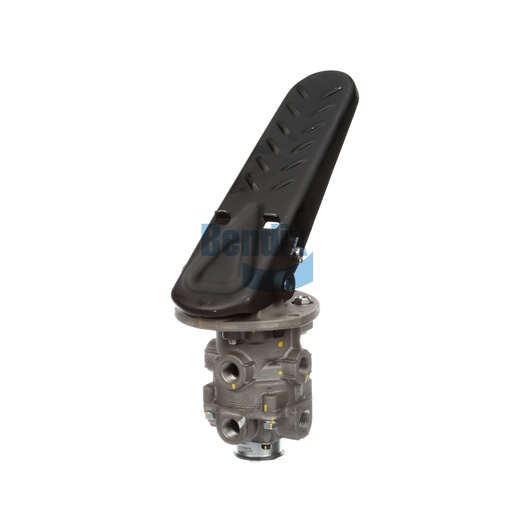

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is an essential component for truck operators looking for reliable and efficient control of their air brake systems. Designed for easy operation, this valve allows the driver to apply the brakes with minimal effort, ensuring a smooth and safe driving experience. It features a sturdy construction that withstands the rigors of commercial use, making it a reliable choice for both fleet and individual vehicle maintenance. With a total pedal travel of 20 degrees and an initial pedal angle of 41 degrees, it is engineered for optimal ergonomics and efficiency. This valve plays a critical role in preventing brake fade and ensuring consistent braking performance, enhancing safety on the road. When it comes to sourcing top-quality commercial truck parts, Source One Parts Center is the go-to destination for genuine Bendix OEM components, ensuring you receive the best for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.88 IN
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
20°
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Initial Pedal Angle
41°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.88 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
BVA-85 Included
No
Pedal Pad Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Pedal Material
Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
5.4 lb
