287564R

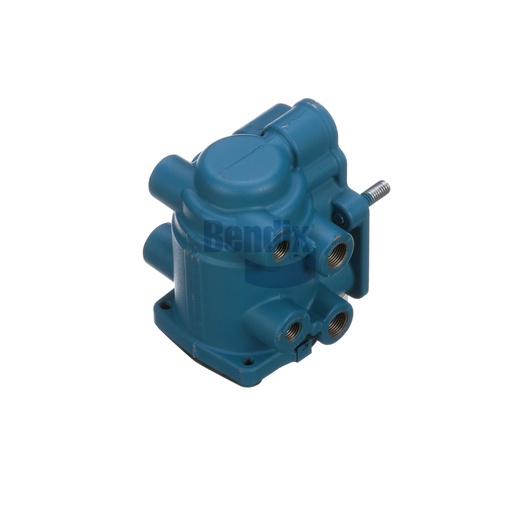

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is designed for reliable operation in commercial vehicles, providing precise control over the braking system. This valve features a durable construction, ensuring long-lasting performance even under high-stress conditions. With its ergonomic design, it allows for easy foot operation, enhancing driver comfort and safety. The valve's effective pressure regulation capabilities contribute to a smoother braking experience, making it an essential component for any heavy-duty vehicle. Source One Parts Center is your trusted source for genuine Bendix parts, guaranteeing that you receive the best quality products for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
0.94 IN
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 1
1/4-18 NPT
Delivery (22) Port 1
1/4-18 NPT
Supply (11) Port 1
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 1
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Width
110.7 mm (4.36 in)
Length
126.7 mm (4.99 in)
Height
147.3 mm (5.8 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-2A Stud (3x)
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Nuts / Washers Included
No
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Weight
3.77 lb
