288383R

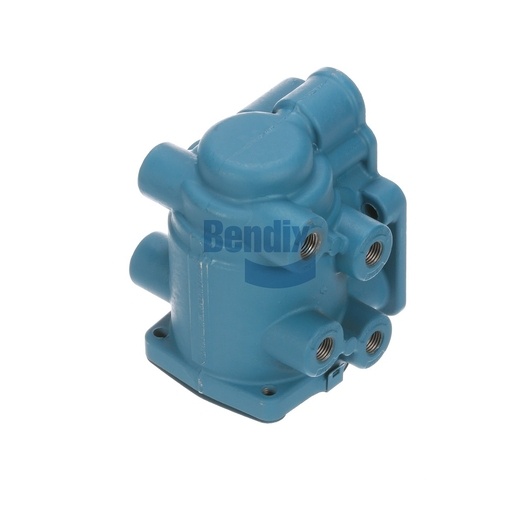

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is an integral part of pneumatic braking systems, providing precise control for drivers when operating commercial vehicles. This valve is engineered for reliability and performance, allowing for smooth engagement and disengagement of the braking system. With a robust construction capable of withstanding harsh conditions, it ensures consistent performance in various environments. The valve design includes multiple ports for flexible installation, making it adaptable to different vehicle configurations. Weighing 1.7 kg, it is lightweight yet durable, ensuring ease of handling during installation. For those needing genuine Bendix parts, Source One Parts Center is the premier destination for authentic OEM components that ensure your braking system functions flawlessly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 1
1/4-18 NPT
Delivery (21) Port 2
1/4-18 NPT
Delivery (22) Port 1
1/4-18 NPT
Delivery (22) Port 2
1/4-18 NPT
Supply (11) Port 1
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 1
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Length
102.9 mm (4.05 in)
Width
110.7 mm (4.36 in)
Height
147.3 mm (5.8 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Weight
3.75 lb
