288513N

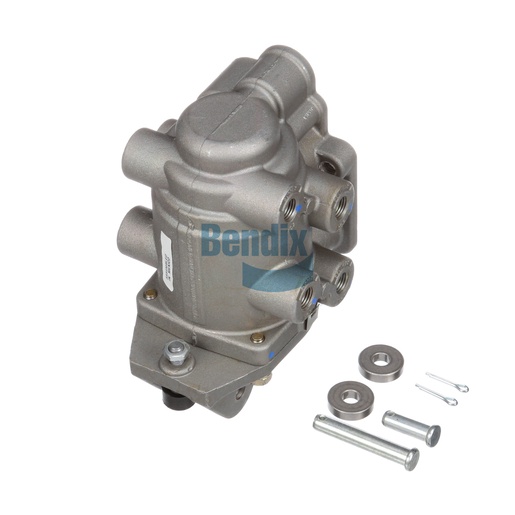

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is a crucial component in the air braking system, designed to provide reliable control and operation for commercial vehicles. Engineered to withstand demanding conditions, this valve features a sturdy construction that ensures longevity and consistent performance. With a net weight of approximately 2.0 kg (4.37 lb), it offers a compact design that simplifies installation and operation. The valve operates efficiently across various temperatures, making it suitable for a wide range of applications. By choosing genuine Bendix products like the Foot Brake Valve, you enhance the safety and efficiency of your vehicle's braking system. Source One Parts Center is your best resource for authentic Bendix OEM parts, ensuring you receive the quality and reliability you expect.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 1
1/4-18 NPT
Delivery (21) Port 2
1/4-18 NPT
Delivery (22) Port 1
1/4-18 NPT
Delivery (22) Port 2
1/4-18 NPT
Supply (11) Port 1
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 1
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Length
102.9 mm (4.05 in)
Width
110.7 mm (4.36 in)
Height
147.3 mm (5.8 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Plunger Material
Steel
Mounting Plate Included
Yes
Weight
4.37 lb
