288774

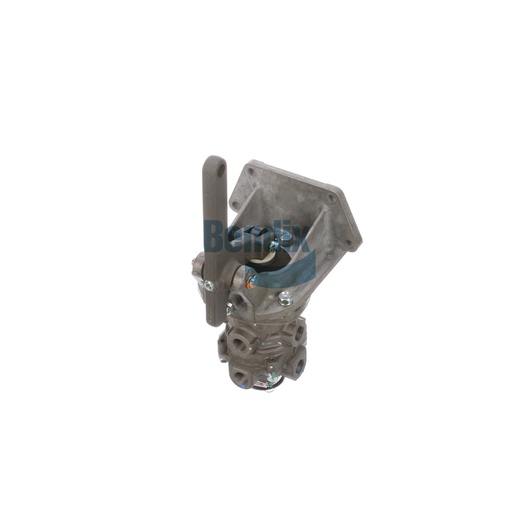

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is an essential part of the braking system in commercial vehicles, providing reliable control over the air braking mechanism. Engineered for durability and performance, this valve allows for smooth and efficient operation, ensuring that drivers can effectively engage the brakes when necessary. Weighing 2.9 kg (6.37 lb), it is designed to withstand the demands of heavy-duty use while maintaining consistent performance. The valve's construction meets high safety standards, making it a vital component for fleet operators who prioritize safety and reliability. Its straightforward installation process also contributes to reduced maintenance time, allowing for quicker repairs. For those looking for Bendix OEM parts, Source One Parts Center is the ultimate choice, guaranteeing you receive high-quality components for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Total Pedal Travel
0.80 IN
VMRS
013-010-051: Application Valve - Dual
Width
146.1 mm (5.75 in)
Length
158.8 mm (6.25 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Height
316.2 mm (12.45 in)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Lever / Linkage
Country of Origin
Mexico
BVA-85 Included
No
Retarder Included
No
Waterproof
No
Plunger Material
Plastic
Graduation Spring Style
Rubber Spring
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (4x)
Weight
6.37 lb
