289054

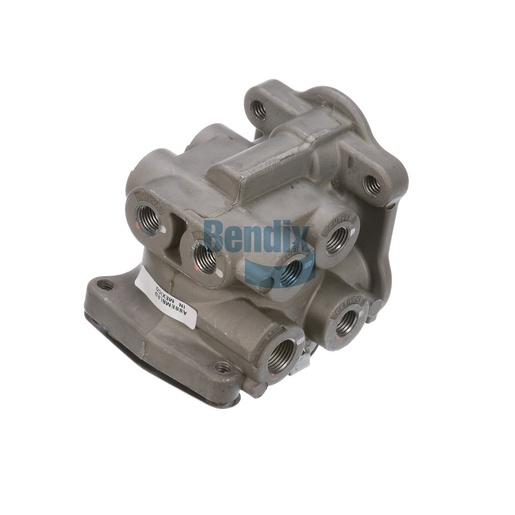

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is a key part of the braking system, designed for precise control during operation. It allows drivers to engage the brake system effectively and safely. This valve is built with high-quality materials to ensure longevity and reliability, functioning optimally in diverse temperature conditions. The valve features multiple supply and delivery ports for enhanced connectivity and flexibility in various vehicle configurations. Its thoughtful design incorporates features such as a dust shield for the exhaust port, ensuring that it operates smoothly over time. Fleet operators and truck owners can depend on this part to maintain the integrity of their braking system. Source One Parts Center is the best destination for purchasing genuine Bendix OEM parts, providing you with components that ensure your commercial vehicles operate safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-019: Application Valve - Single Stage
Delivery Port 4
1/2-14 NPT
Supply Port 7
1/2-14 NPT
Delivery Port 1
1/4-18 NPT
Delivery Port 3
1/4-18 NPT
Supply Port 1
1/4-18 NPT
Supply Port 2
1/4-18 NPT
Supply Port 3
1/4-18 NPT
Supply Port 4
1/4-18 NPT
Supply Port 5
1/4-18 NPT
Supply Port 6
1/4-18 NPT
Supply Port 8
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Delivery Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Country of Origin
Mexico, Germany
Mounting Plate Included
No
Pedal Included
No
Regulatory Compliance
Not FMVSS 121 Compliant
Graduation Spring Style
Rubber
Weight
4.85 lb
