289106N

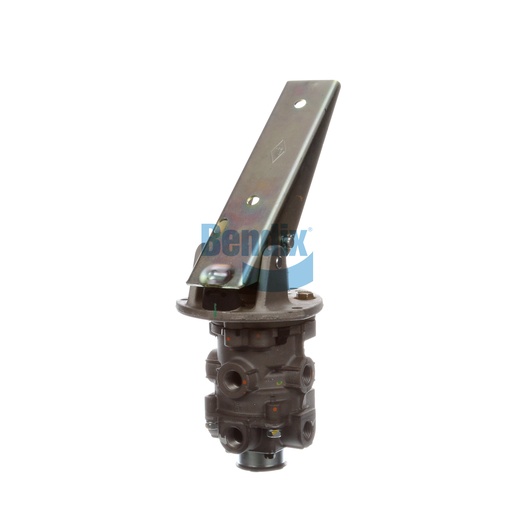

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is a critical component in the air brake system of commercial vehicles, designed for reliable performance and ease of use. This valve features a robust design and ensures smooth operation when engaging the foot brake, providing drivers with confidence and control. Weighing 2.1 kg (4.7 lb), it is compact yet powerful, making it suitable for heavy-duty applications. The valve is engineered to withstand harsh conditions while delivering consistent performance, thus enhancing the overall safety of your vehicle. Its user-friendly design simplifies installation and maintenance, making it an ideal choice for fleet operators looking to minimize downtime. When searching for genuine Bendix parts, Source One Parts Center is the best destination for quality OEM components that ensure optimal performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Width
116.1 mm (4.57 in)
Length
161.3 mm (6.35 in)
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
22°
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Height
310.4 mm (12.22 in)
Initial Pedal Angle
45°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
7.15 IN
Pedal Length (Overall)
8.75 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
BVA-85 Included
No
Pedal Pad Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Pedal Material
Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.7 lb
