$154.95
$185.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

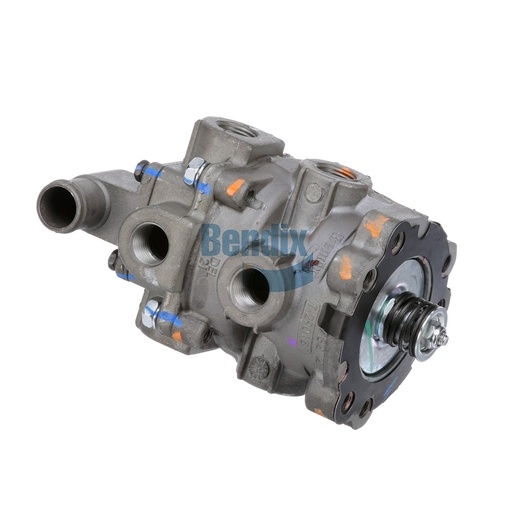

The Bendix Foot Brake Valve is a critical component in the braking system of commercial vehicles, designed for precise and responsive operation. This valve features a compact design and is constructed to withstand demanding conditions, ensuring consistent performance. With a differential pressure rating of 3.0 PSI and compatibility with various truck models, it is an ideal choice for fleet operators looking to maintain efficient braking systems. The valve's intuitive design allows for straightforward installation and maintenance, reducing downtime. This ensures that vehicles remain safe and reliable on the road. For sourcing authentic Bendix parts, look no further than Source One Parts Center, known for its commitment to quality and customer satisfaction.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Height
155.7 mm (6.13 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Exhaust Port
Snorkel - 3/4 Tube (90° Elbow)
Weight
2.16 lb
