289478N

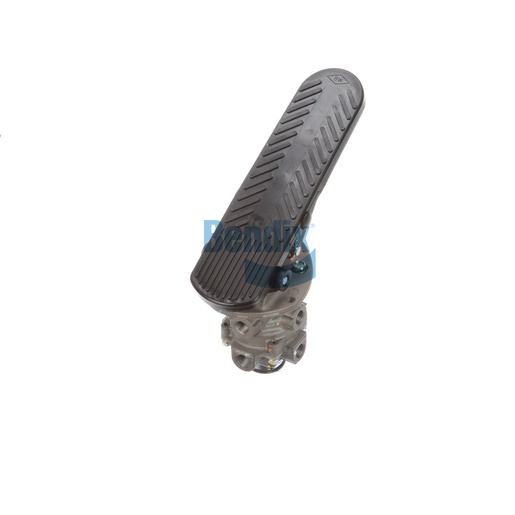

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is specifically designed to provide superior control and responsiveness for heavy-duty commercial vehicles. Built with a floor treadle style, this valve allows for efficient braking with a pedal length of 10.94 inches and a total travel of 20 degrees. Engineered for durability, it operates effectively in varying temperatures, from -40°F to 200°F, ensuring reliable performance regardless of environmental conditions. This valve's robust construction and lightweight design (2.2 kg or 4.78 lb) simplify installation processes while enhancing overall safety measures during operation. With precise port configurations for optimal air delivery, the Bendix Foot Brake Valve is an essential component for any commercial vehicle. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you maintain the highest standards of safety and efficiency on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.94 IN
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
20°
Initial Pedal Angle
27°
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
BVA-85 Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Pedal Material
Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.78 lb
