289479N

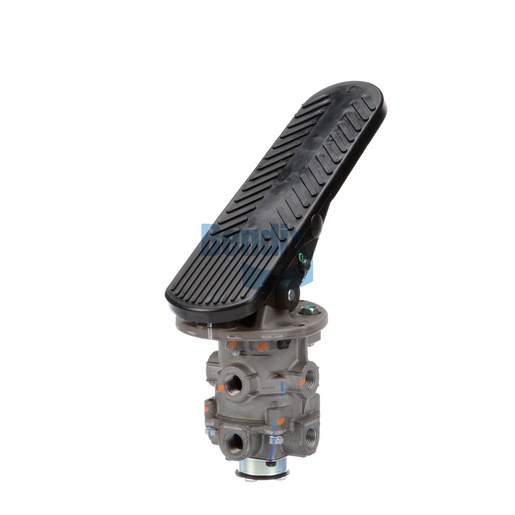

Foot Brake Valve
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$309.95
$371.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix foot brake valve is a critical component in the air braking system, designed to provide reliable control of braking force for commercial vehicles. This valve is engineered for durability and performance, ensuring that your braking system operates efficiently under various driving conditions. Weighing 2.2 kg, the foot brake valve is made with high-quality materials to withstand the rigors of heavy-duty applications. Its design facilitates easy installation and maintenance, making it a practical choice for fleet operators. With features that enhance responsiveness and control, this foot brake valve is essential for maintaining safety on the road. By choosing Bendix, you are investing in quality and reliability. For genuine Bendix OEM parts, Source One Parts Center is the best place to find what you need for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.94 IN
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
20°
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Initial Pedal Angle
34°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
BVA-85 Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Pedal Material
Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.78 lb
