$339.95
$407.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

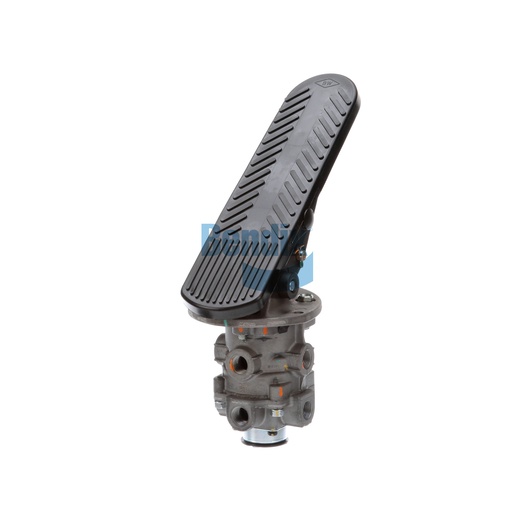

The Foot Brake Valve is essential for providing precise control over your truck's braking system, ensuring safety and responsiveness during operation. This valve is designed to handle the demands of heavy-duty applications, making it a reliable choice for commercial vehicles. Its durable construction ensures long-lasting performance, while its easy installation process makes it a convenient option for maintenance. With the Bendix Foot Brake Valve, you can expect enhanced braking efficiency, which is crucial for safe operation on the road. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring quality and performance for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.94 IN
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
20°
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Initial Pedal Angle
41°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
BVA-85 Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Pedal Material
Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.72 lb
