5005577N

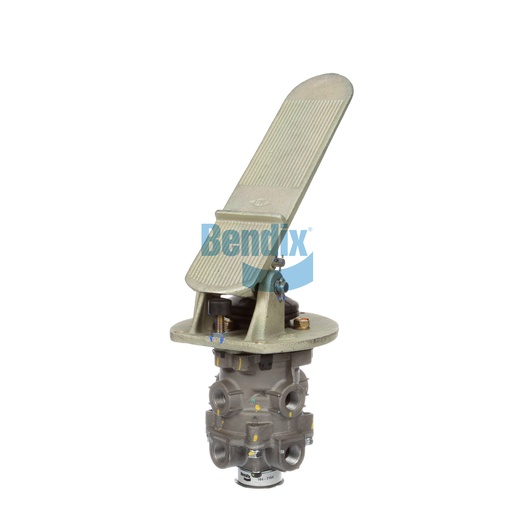

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve by Bendix is engineered to provide precise control over your vehicle's braking system, enhancing safety and responsiveness. This pedal-operated valve features a durable construction designed to withstand the rigors of heavy use, ensuring longevity and reliability. With its unique axial and perpendicular port configuration, installation is straightforward, allowing for seamless integration into various air brake systems. The valve operates effectively within a temperature range of -40 °F to 200 °F, making it suitable for diverse environmental conditions. Additionally, it is designed with a dust shield exhaust port for added protection, ensuring optimal performance in all settings. Weighing just under 5 pounds, this foot brake valve is easy to manage and install. For those seeking reliable Bendix OEM parts, Source One Parts Center is the premier destination for high-quality commercial vehicle components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.19 IN
Width
131.6 mm (5.18 in)
Length
189.7 mm (7.47 in)
Maximum Operating Temperature
200 °F (93 °C)
Total Pedal Travel
24°
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Height
351.3 mm (13.83 in)
Initial Pedal Angle
45°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.91 IN
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Pedal Material
Iron
Country of Origin
Mexico
BVA-85 Included
No
Pedal Pad Included
No
Retarder Included
No
Waterproof
No
Plunger Material
Plastic
Graduation Spring Style
Rubber Spring
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
4.96 lb
