5006596N

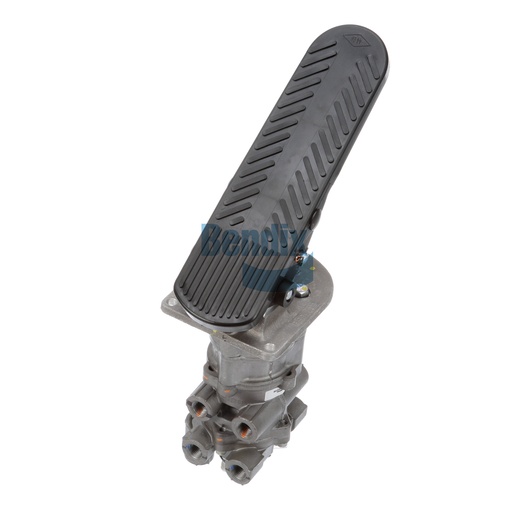

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix foot brake valve is an integral part of your vehicle's braking system, designed for optimal control and performance during operation. This valve features a durable steel construction and a treadle pedal style that allows for smooth and responsive braking action. With a maximum operating temperature of 200°F and a minimum of -40°F, it is engineered to perform under a wide range of conditions, making it a reliable choice for heavy-duty applications. The valve's thoughtful design ensures compatibility with various air systems, enhancing the overall efficacy of your vehicle's braking performance. With easy installation and maintenance, it is perfect for fleet managers looking to maintain vehicle uptime. Source One Parts Center is your premier source for genuine Bendix OEM parts, ensuring the highest quality for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.94 IN
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Initial Pedal Angle
33°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Auxiliary Supply Port
Closed Port
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
BVA-85 Included
No
Retarder Included
No
Waterproof
No
Port Configuration
Parallel
Pedal Material
Steel
Plunger Material
Steel
Graduation Spring Style
Steel Spring
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .34 IN (3x)
Weight
7.9 lb
