$369.95
$443.94

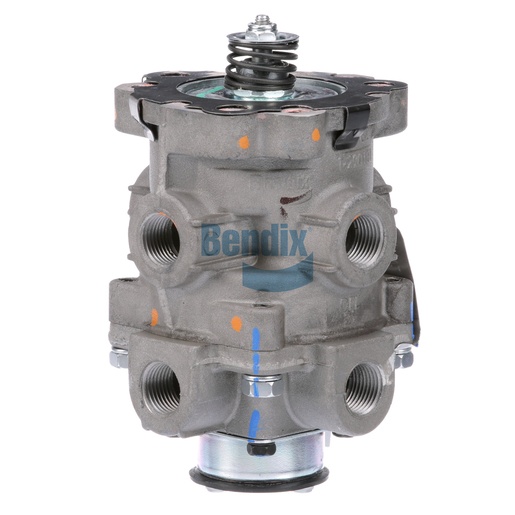

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is a crucial part of your truck's braking system, offering precise control and responsiveness when you need it most. Engineered to meet stringent safety standards, this valve enhances the efficiency of your braking actions, providing a smooth and reliable stopping power essential for heavy-duty vehicles. Its robust construction ensures durability under high-pressure conditions, making it ideal for long hauls and demanding driving environments. With easy installation and compatibility with various truck models, this valve is a must-have for maintaining optimal brake performance. Choose the Bendix Foot Brake Valve for unmatched reliability in your braking system. At Source One Parts Center, we pride ourselves on delivering genuine Bendix OEM parts to keep your vehicles running safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Height
141.7 mm (5.58 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
ECE Reg 13
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Weight
2.49 lb
