5009250

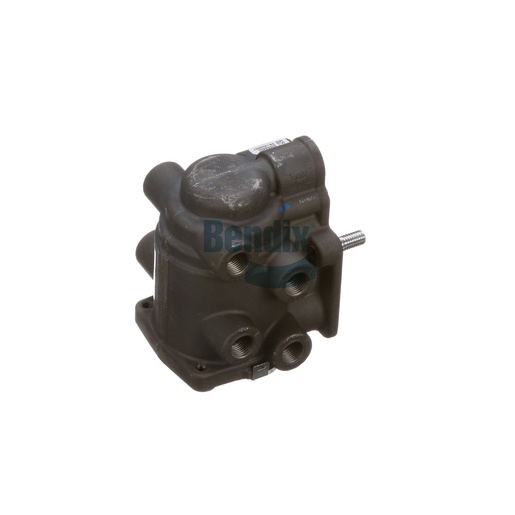

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is a crucial component of your Bendix braking system, designed to provide reliable control of your vehicle's air brakes. This valve features a robust construction that withstands the rigors of heavy-duty use while offering a responsive braking experience. With multiple ports for efficient air flow, it allows for precise modulation of braking pressure, enhancing safety and performance. Weighing in at approximately 1.7 lbs, this valve is compact and easy to install, making it a practical choice for maintenance and repair. Its durable design ensures long-lasting performance, and it meets all OEM specifications for compatibility and reliability. When you choose Source One Parts Center for your Bendix OEM parts, you’re securing the quality and reliability necessary for safe commercial vehicle operation.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting Stud Length
0.75 IN
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Supply (12) Port 4
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-2A Stud (3x)
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Nuts / Washers Included
No
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Weight
3.77 lb
