DESCRIPTION

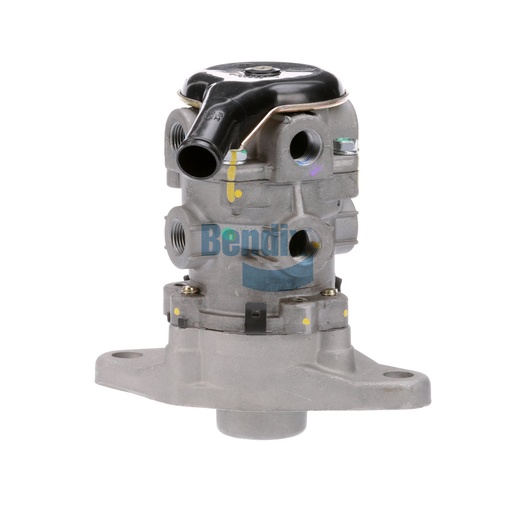

The Foot Brake Valve is a key component in your truck's braking system, designed to provide precise control over braking actions. This valve allows the driver to modulate brake pressure effectively, ensuring smooth and responsive braking performance. Engineered for durability, the Foot Brake Valve is built to withstand the rigors of heavy-duty usage while maintaining consistent performance across various driving conditions. By enhancing the efficiency of your braking system, this valve contributes to improved safety and control on the road, making it an essential part of your vehicle's operational reliability. Regular inspections and timely replacements of the Foot Brake Valve are crucial for maintaining optimal braking performance. Source One Parts Center is your best source for genuine Bendix OEM parts, ensuring you receive high-quality components tailored to your vehicle's specifications.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Length
131.6 mm (5.18 in)
Width
131.6 mm (5.18 in)
Height
167.9 mm (6.61 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Exhaust Port
Snorkel - 3/4 Tube (100° Elbow)
Plunger Material
Steel
Mounting Plate Included
Yes
Mounting (Vehicle)
Ø .53 IN (2x)
Weight
3.79 lb
