800732

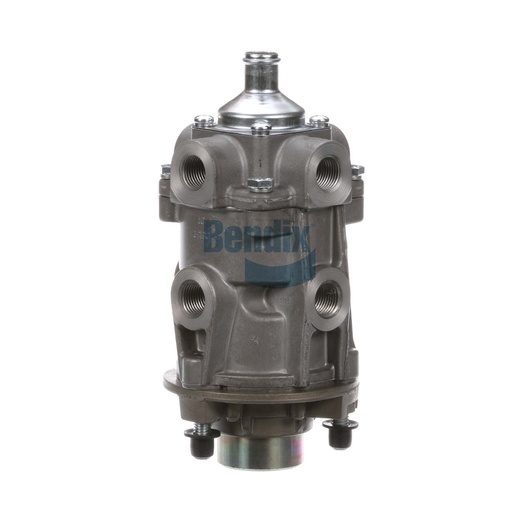

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Foot Brake Valve is a critical component in your truck's braking system, designed to provide smooth and responsive braking performance. This valve is built for durability and reliability, ensuring that your vehicle can handle the demands of heavy-duty use. Featuring a robust construction with a maximum operating temperature of 200 °F (93 °C), the Foot Brake Valve is engineered to perform under the most extreme conditions. Its intuitive design allows for easy operation, providing drivers with a straightforward and effective braking experience. By investing in the Foot Brake Valve, you are ensuring that your truck maintains optimal braking performance and safety. Source One Parts Center is your trusted source for genuine Bendix parts, providing you with the quality components necessary for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Mounting Stud Length
16.50 MM
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Regulatory Compliance
FMVSS 121
Delivery (21) Port 1
M16 X 1.5-6H
Delivery (21) Port 2
M16 X 1.5-6H
Delivery (22) Port 1
M16 X 1.5-6H
Delivery (22) Port 2
M16 X 1.5-6H
Supply (11) Port 1
M16 X 1.5-6H
Supply (11) Port 2
M16 X 1.5-6H
Supply (12) Port 1
M16 X 1.5-6H
Supply (12) Port 2
M16 X 1.5-6H
Mounting (Valve Body)
M8 X 1.25-6g Stud (3x)
Country of Origin
Mexico
BVA-85 Included
No
Mounting Nuts / Washers Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Pedal Style
Push Rod
Graduation Spring Style
Rubber Spring
Exhaust Port
Snorkel - 3/4 Tube
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Weight
3.2 lb
