801031

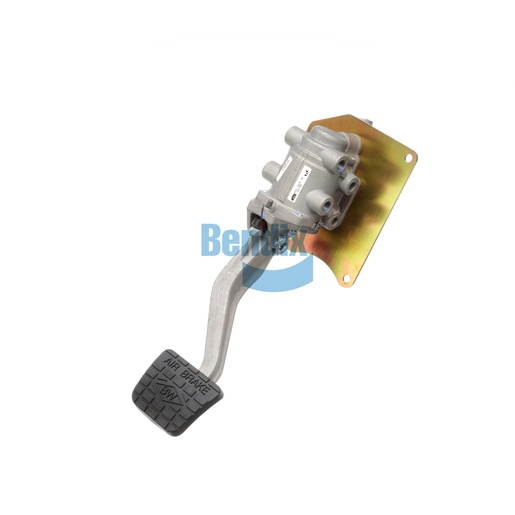

Foot Brake Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is engineered for optimal performance in heavy-duty vehicles, providing a reliable and responsive braking option. Constructed from high-quality materials, this valve is designed to withstand the rigors of daily use while ensuring consistent performance under pressure. With a net weight of 5.4 kg, it features a user-friendly design that simplifies installation and maintenance. This foot-operated valve allows for precise brake control, enhancing safety and maneuverability in various driving conditions. Its durable construction ensures longevity, making it an indispensable part of your braking system. For reliable Bendix parts like this foot brake valve, Source One Parts Center is your trusted supplier for genuine OEM components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (from Pivot)
11.57 IN
Width
110.7 mm (4.36 in)
Pedal Length (Overall)
12.30 IN
Length
126.7 mm (4.99 in)
Height
147.3 mm (5.8 in)
Total Pedal Travel
17°
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Pedal Offset
3.25 IN (Right)
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Initial Pedal Angle
45°
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Pedal Material
Cast Aluminum
Delivery (21) Port 1
Cored Closed
Delivery (21) Port 2
Cored Closed
Delivery (22) Port 1
Cored Closed
Delivery (22) Port 2
Cored Closed
Supply (11) Port 1
Cored Closed
Supply (12) Port 1
Cored Closed
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Rubber Boot Included
No
Waterproof
No
Delivery (21) Port 3
Open Port
Delivery (22) Port 3
Open Port
Supply (11) Port 3
Open Port
Supply (12) Port 3
Open Port
Supply (12) Port 4
Open Port
Plunger Material
Plastic
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Pedal Style
Suspended (Pedal)
Manifold Included
Yes
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Mounting (Vehicle)
Ø .420 IN (4x)
Weight
11.82 lb
