$399.95
$479.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

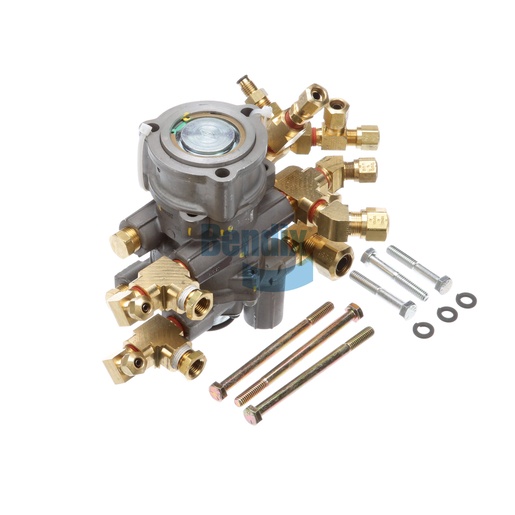

The Foot Brake Valve from Bendix is a vital component for any commercial vehicle, providing exceptional reliability and performance in controlling braking actions. This foot-operated valve features a durable design that withstands the rigors of heavy-duty use, ensuring a responsive and consistent brake application every time. With its straightforward installation process and versatile port configurations, this valve is suitable for a variety of truck setups, making it an essential upgrade for those looking to enhance their vehicle's braking system. Engineered to meet rigorous safety standards, the Foot Brake Valve ensures that operators can rely on their equipment under all driving conditions. The valve's precision engineering not only improves braking efficiency but also contributes to overall vehicle safety. For those seeking genuine Bendix OEM parts, Source One Parts Center is the premier destination, providing authentic components that enhance the reliability and performance of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Height
152.4 mm (6.0 in)
Width
196.9 mm (7.75 in)
Maximum Operating Temperature
200 °F (93 °C)
Length
245.4 mm (9.66 in)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT (Plugged)
Delivery (22) Port 1
3/8-18 NPT (Plugged)
Delivery (21) Port 2
3/8-18 NPT (with Multiple Fittings)
Delivery (22) Port 2
3/8-18 NPT (with Multiple Fittings)
Supply (11) Port 1
3/8-18 NPT (with Multiple Fittings)
Supply (11) Port 2
3/8-18 NPT (with Multiple Fittings)
Supply (12) Port 1
3/8-18 NPT (with Multiple Fittings)
Supply (12) Port 2
3/8-18 NPT x 5/8 Tube (45° Flare / 90° Elbow)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Auxiliary Supply Port
Closed Port
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Steel Spring
Weight
7.21 lb
