801478

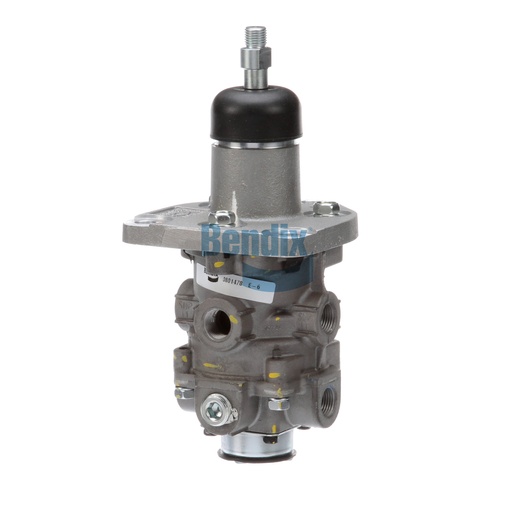

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is an essential part of any commercial vehicle's braking system, ensuring reliable and responsive brake operation under all conditions. Designed for ease of use, this valve features a robust construction that can withstand the demands of heavy-duty applications, with a net weight of 1.8 kg making it manageable for quick installations. The valve provides precise control over braking pressure, enhancing safety and performance during operation. Its compatibility with a variety of Bendix systems makes it a versatile choice for fleet maintenance. For the best selection of genuine Bendix parts, including this foot brake valve, Source One Parts Center is your trusted partner.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Width
107.7 mm (4.24 in)
Length
124.2 mm (4.89 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
227.8 mm (8.97 in)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Retarder Included
No
Waterproof
No
Pedal Style
Push Rod
Graduation Spring Style
Rubber Spring
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .433 IN (3x)
Weight
4.06 lb
